BKMs for AGX5 Modular Devkit Setup with OFS 2025.1.1

The following instructions are intended to enable users in using an Agilex 5 Modular Development Kit with the OFS 2025.1-1 release.

1.0 Host Machine Settings

The following BIOS settings will need to be changed to support the Agilex 5 Modular Development Kit on an HP server running ILO 5+. The location of specific settings in the BIOS menu may change depending on the server manufacturer and BIOS revision.

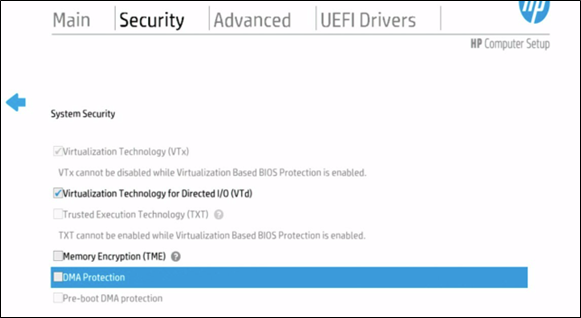

  1. BIOS Setting: System Security.

    1.a. Enable Virtualization Technology for Directed I/O (VTd)

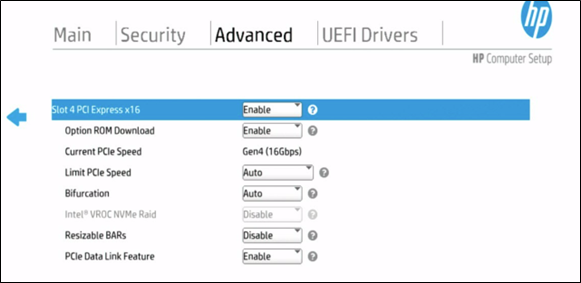

  1. BIOS Setting: PCIe Slot Setting (Everything default)

2.0 AGX5 E-Series Modular Devkit Installation

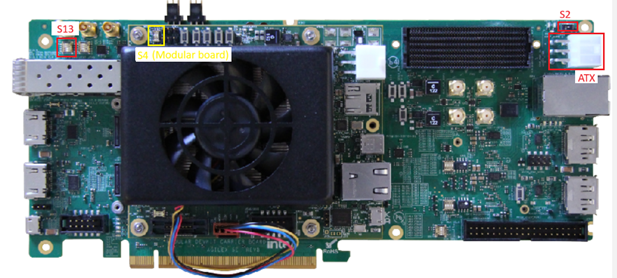

2.1 Switch Settings

  1. Enable the following switch settings for JTAG programming:

Table 1: SW for Jtag Programming

|Switch|Position|Description|
|----|----|----|
|SW2|POS-3|POS-3 - Enable ATX 12V input for system power \n POS-1 - for PCIe EF 12V input for system power|
|SW4|OFF|ON - Enables PCIe JTAG mode \n OFF - Enables onboard UBII mode|
|SW4.1|ON|ON - MSEL 1 Low \n OFF - MSEL 1 High \n\n **Note:** If you want to control the configuration over BTS, set this switch to OFF|
|SW4.2|ON|ON - MSEL 2 Low \n OFF - MSEL 2 High \n\n **Note:** If you want to control the configuration over BTS, set this switch to OFF|

  1. Connect the devkit to host machine via PCIe Gen3 (or higher) slot.

  2. Connect the devkit to ATX power supply between it and the host.

3.0 How to Program the FIM USING JTAG

  1. Download the OFS 2025.1-1 FIM from https://github.com/OFS/ofs-agx5-pcie-attach/releases/download/ofs-2025.1-1/.

  2. If you haven't already, add the Quartus Programmer binaries to PATH.

    bash session export PATH="$PATH:"/<quartus_install_path>/intelFPGA_pro/<quartus version>/qprogrammer/quartus/bin

  3. List FPGA connected via JTAG.

    bash session jtagconfig

  4. Program the FIM onto FPGA. (Note the device_number from jtagconfig).

    bash session quartus_pgm -c 1 -m jtag -o "p;/<path_to_image>/eseries-mdk-images_ofs-2025-1-1/ofs_top.sof@1"

  5. Reboot.

    bash session sudo reboot

  6. After programming FIM and reboot, the host machine should be able to detect the new FPGA via its PCIe connection.

    bash session lspci | grep acc

    In this case, the PCI-address of AGX5E Modular Devkit is 5e:00.0
